BAE Audio 1073MPF with PSU

The BAE1073MPF is the mic pre-amp version of the 1073 equaliser, sharing the the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs and maintained focused mids.

A transformer coupled input, with two selectable impedances makes the BAE 1073MP work well with a variety of microphones.

There is also a line input feature for adding depth to 2-bus mixes and a DI input for all passive and active instruments.

As a coloured and versatile mic-pre, the BAE 1073MP maintains its sonic signature across a wide bandwidth.

Key Features:

• Two Class A preamps with direct inputs in a single rack space with an external power supply
• High Impedance direct input for guitar and synthesizer
• Output level control serves as gain trim between the 5 dB steps on gain switch
• Balanced mic input and balanced +4 dB output are on XLR connectors off the rear of the module.
• Balanced line input is achieved through the LN switch on the front.
• Phase reverse
• Mic input impedance toggle switch between 1200 ohm and 300 ohm
• Similar Class A preamp as Neve™* 1073 equalizer/preamp modules
• Pad is an integral part of the gain switch same as Neve™* 1073 equalizer/preamp modules
• Has integrated phantom power with a lighted switch on the front panel

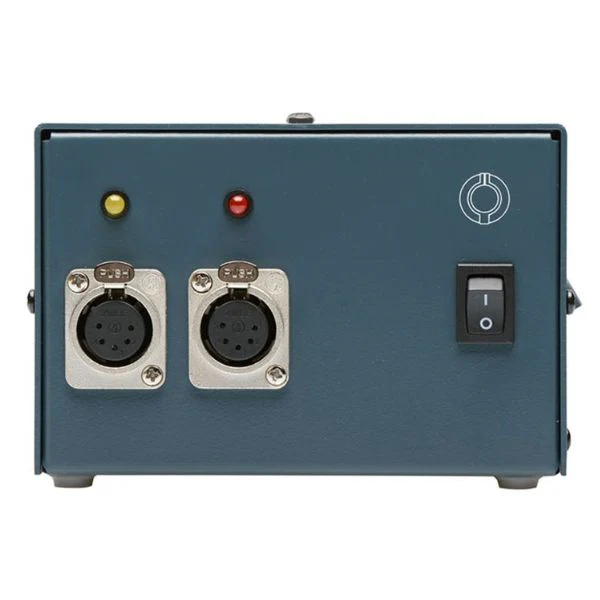

• Oversize remote power supply can operate up to four channels of preamp
