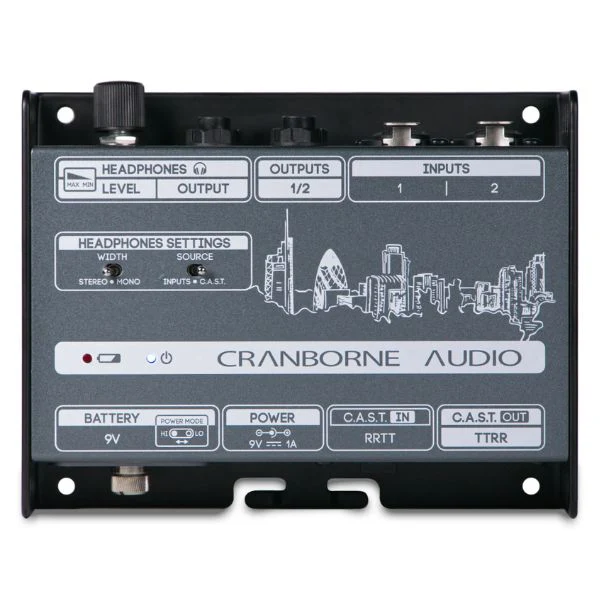

Cranborne Audio N-22H

Cranborne Audio's N22H is a reference-grade headphone amplifier with advanced C.A.S.T. cable management, battery power, and switchable power modes. Using Cranborne Audio's C.A.S.T. system, the N22H can be connected on the end of a 100m (330ft) shielded Cat 5e, Cat 6, and Cat 7 cable and deliver a headphone mix directly to the musician during tracking.

Based on the same custom design found in the renowned 500R8 interface, N22H’s headphone amplifier achieves a flat Frequency Response from 0.8Hz to above 250kHz and ultra-low distortion (0.0009% THD+N, 100 kOhm load) allowing it to power headphones with clean, transparent power during critical listening, mixing, and mastering.

Key Features:

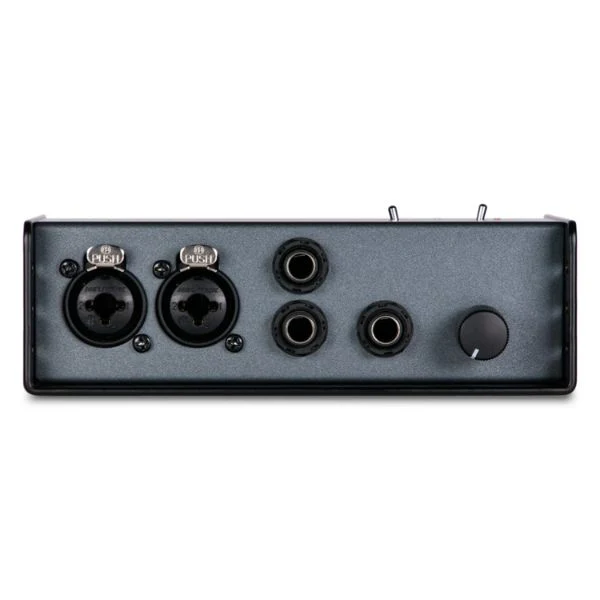

• Two balanced combi jack, XLR and 1/4” jack outputs
• Reference-quality headphone amplifier
• 9V Battery compartment
• Switchable High and Low Power Modes

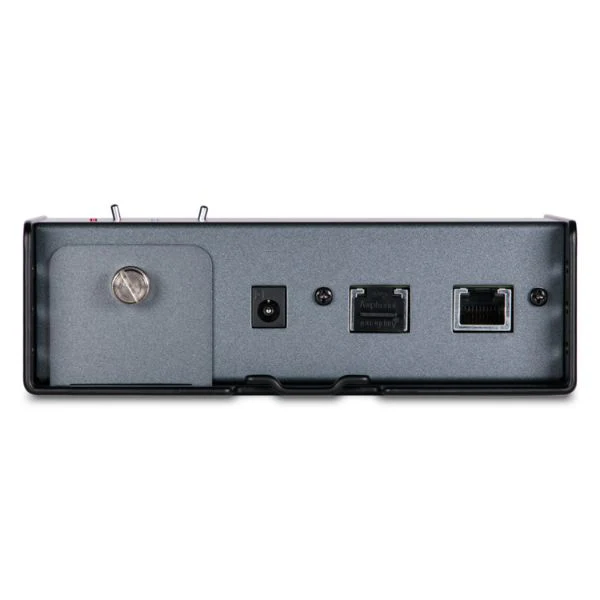

• 9V DC Power Inlet
• Cat5 snake connectivity with N22 or second N22H
• Compatible with any shielded Cat 5e/Cat 6/Cat 7 cable with distances up to 100m/330ft
• Improved crosstalk performance with high-performance Cat 6 and Cat 7 (recommended)
• Ruggedised metal enclosure
• Fixing holes for permanent installation
• Cable-tie holes for cable management
• Non-slip rubber feet
• 3/8" mic stand thread mount on bottom
