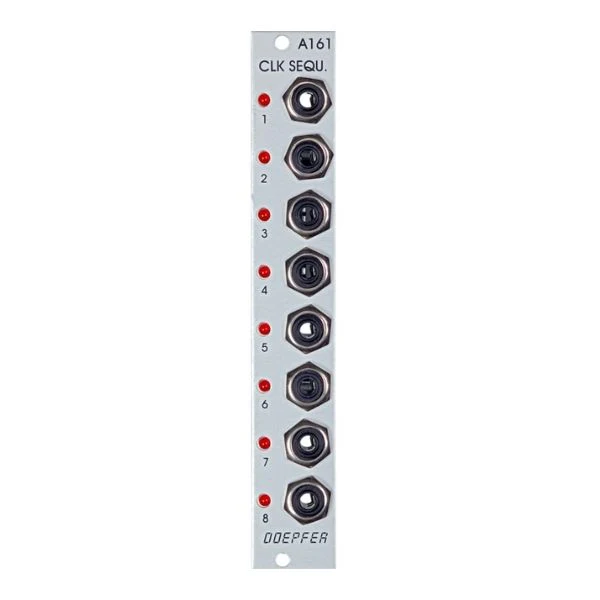

DOEPFER A-161 Clock Sequencer

Module A-161 is an eight-step Clock Sequencer which is internally connected to the Clock Divider (A-160). Eight outputs are sequentially switched by the clock signals from the A-160 (see Fig. 1) and can act, for instance, as sequential rhythmic triggers for an envelope. The reset on the A-160 also works on the A-161 (instant return to Step 1). The low/high levels of the output signals are 0V and about +10V. In combination with a mixer (A-138) short analog sequences can be generated.

The A-161 requires an Clock Divider A-160-1 and has to be mounted directly to the right of the A-160-1. It's not possible to combine the A-161 with A-160-2 or A-160-5.

Key Features:

• 8-step clock sequencer
• Receives clock-divided signal directly from the required A-160-1 clock divider module
• Perfect for creating sequential rhythmic triggers for envelopes
• Each of the 8 sequenced steps includes an individual output
• Individual LEDs visually display when each division triggers
