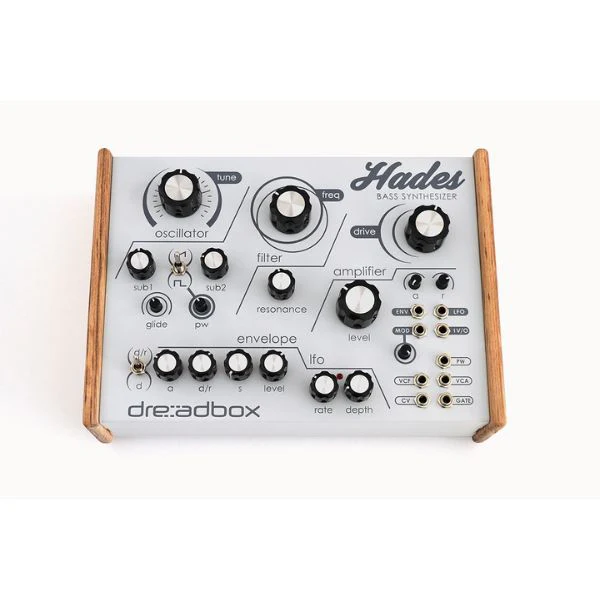

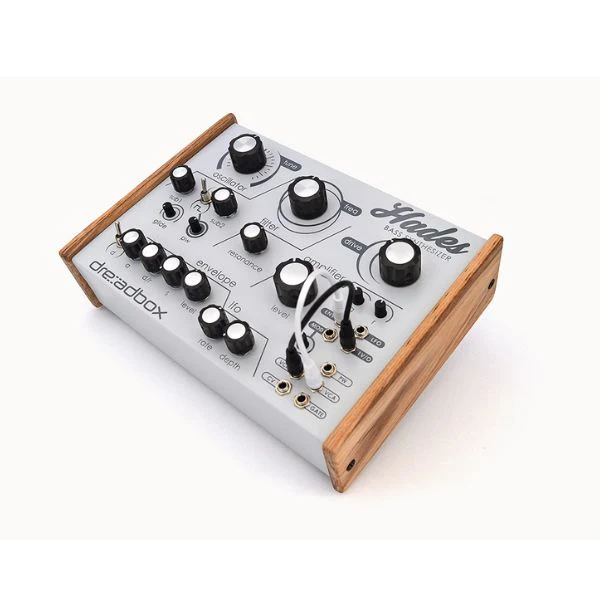

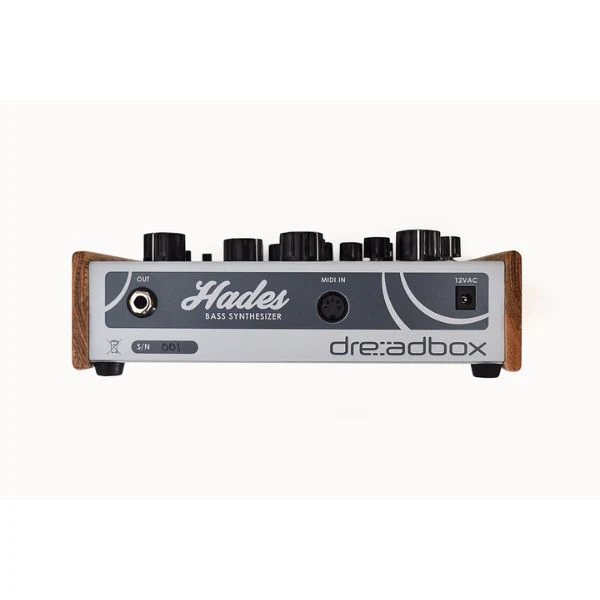

Dreadbox Hades (Reissue)

Reissue of the famous analog bass synth, the Hades from Dreadbox is a faithful reproduction complete with OTA distortion, USB power, and the ability to be racked up in a Eurorack case, taking up 42hp.

One massive sounding VCO with two sub octaves and two waveforms. All of that feeds an OTA VCA capable of lovely distortion and a nice, thick 3-pole lowpass resonating filter.

Two envelopes, one AD/RS and an improved AR over the original, plus a wide-range triangle LFO for exceptional modulation capabilities. There are also 11 patch points available to customise the sound.

Key Features:

• Full Analog Circuit only with Through Hole Components
• 1x VCO with 2 suboctaves (3 voices in total)
• Pulse width and Glide controls
• 3-pole 18dB/oct Resonating Low Pass Filter
• OTA Distortion Circuit for extreme sounds
• OTA based VCA
• 2 envelope Generators
• Attack, Decay/Release, Sustain (extra snappy and patchable)
• Attack, Release (VCA hardwired)
• Triangle Wave LFO
• 8 point patch matrix eurorack compatible
• 5 MIDI Octaves from C0 up to C5 or unlimited via CV/Gate
