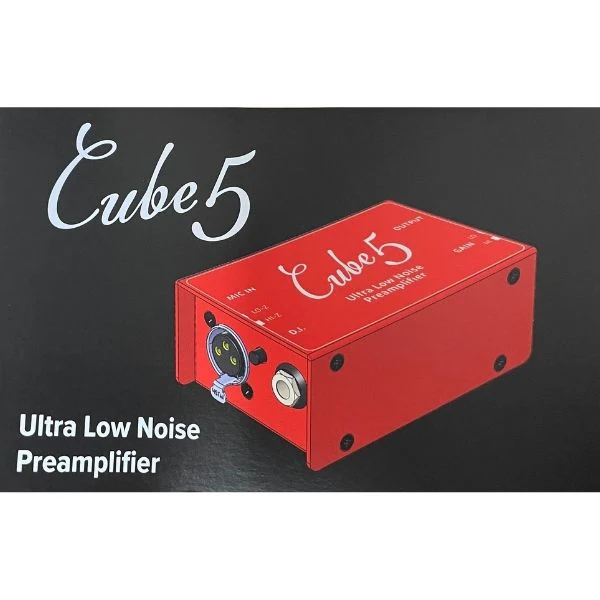

Peach Audio Cube 5

The Cube 5 is a high performance, phantom-powered, compact preamp suitable for stage, studio, podcasting or front of house level boosting applications.

It features fully balanced, transformer-coupled input and output, with a JFET topology for low-noise boosting of microphone and instrument levels. Gain and impedance have been optimised for low-output microphones such as dynamic and ribbon types, as well as a high-impedance DI to amplify passive instrument pickups without excess loading, ensuring perfect tonal capture.

The DI input (TRS socket) can also function as a send-return effects loop for the microphone input, to insert vocal processing or other effects in the signal chain.

Specifications:

• Microphone Input: XLR Female - Transformer balanced (pin 1 shield, pin 2 hot, pin 3 cold)
• Input Impedance: Low 600 Ω | High 4k Ω
• Noise Figure: -132dBV (A Weighted)
• DI Input: 1/4" TRS (Unbalanced)
• Input Impedance: 2.3M Ω
• Effects Loop
• Send (Ring): 10k Ω (Unbalanced)
• Return (Tip): 2.3M Ω (Unbalanced)
• Impedance and levels are optimised for guitar pedals and FX
• Frequency Response: 20Hz - 20kHz, +/-1dB
• Output: XLR Male - Transformer balanced (pin 1 shield, pin 2 hot, pin 3 cold)
• Output Impedance: 200Ω
• Power: Phantom: +48V @ 5mA
• Dimensions: L108mm, H: 45mm, W: 70mm
