SPL Madison

The SPL Madison offers the pure SPL analog sound for every MADI equipped digital console, audio router and PC MADI card.

With 16 input and 16 output channels in a single rack space, the Madison combines state of the art signal conversion with highly reliable clock and MADI processing. And as a true SPL unit it is simple to operate, easy to expand and, of course, an awesome sounding conversion system.

Key features:

• 16 AD & 16 DA converters in 1USuperb sounding converters with a sophisticated analog section on 36 V audio rails+24 dBu professional output level
• Latency-neutral MADI chaining44.1 to 192?kHz, ±10% vari-speed
• SPL clock-shop for jitter-free operation
• Ultra-compatible, always operational MADI IO with ultra low conversion latencies

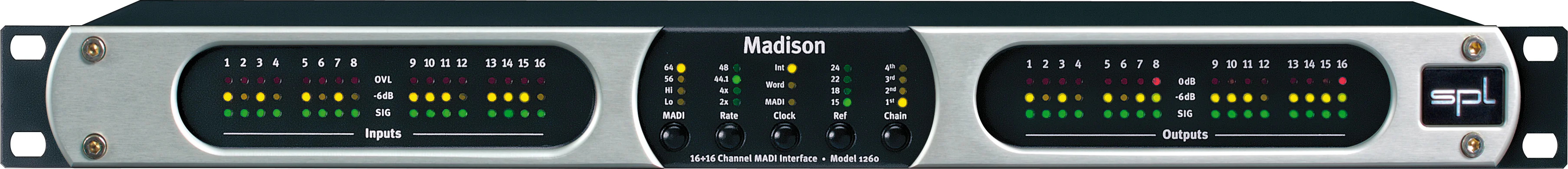

• Four directly selectable reference levels: 15/18/22/24Simple operation and setup right from the front panel controls
• Ergonomic, distance-readable meters for clear level status indication of any I/O channelFanless, absolutely silent low-power design (max. 30?W)

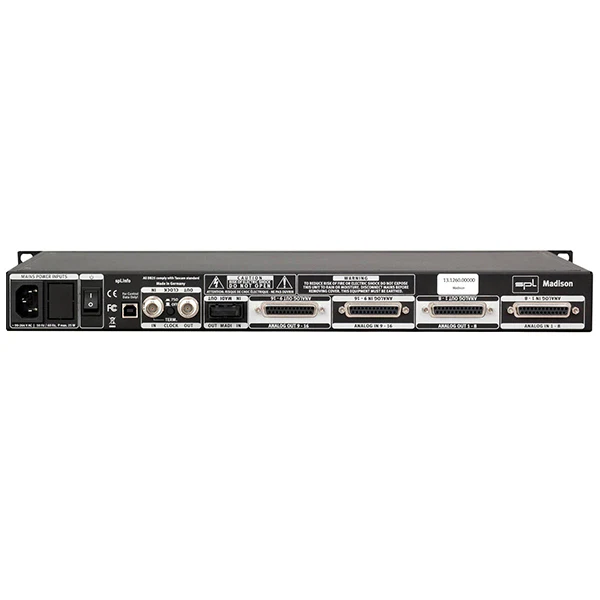

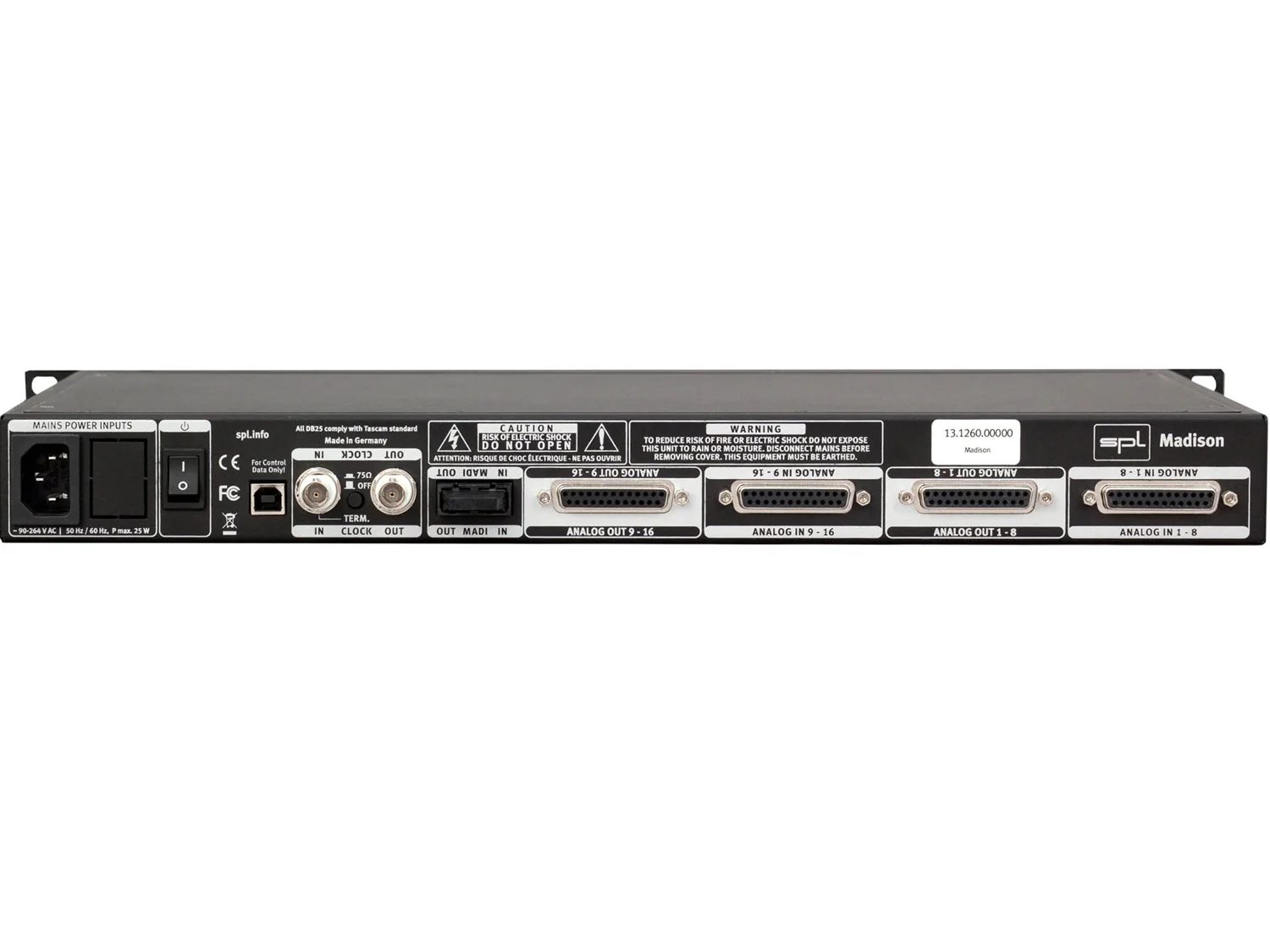

• Redundant power supply optionallyFour analog, 8-channel multicore DB 25 sockets (TASCAM industry standard)
