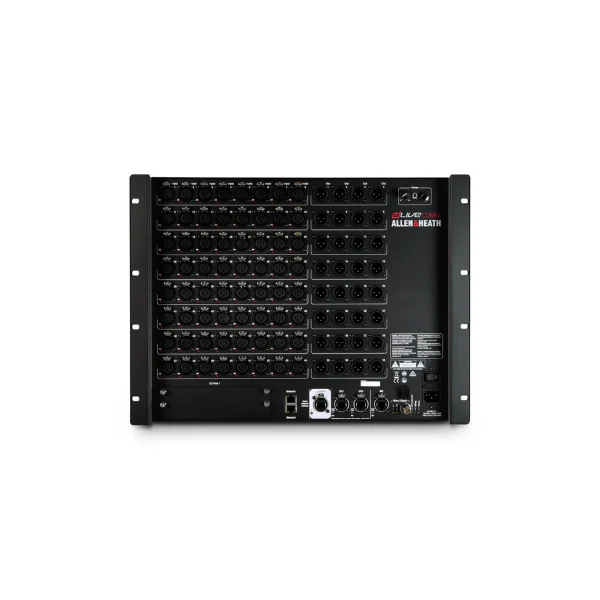

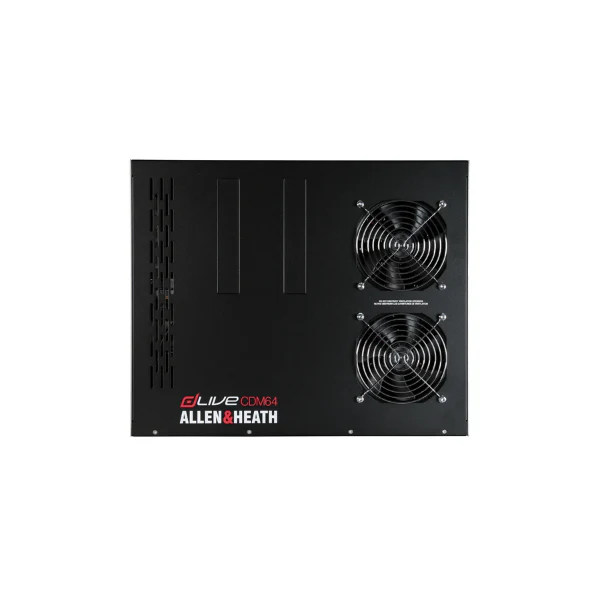

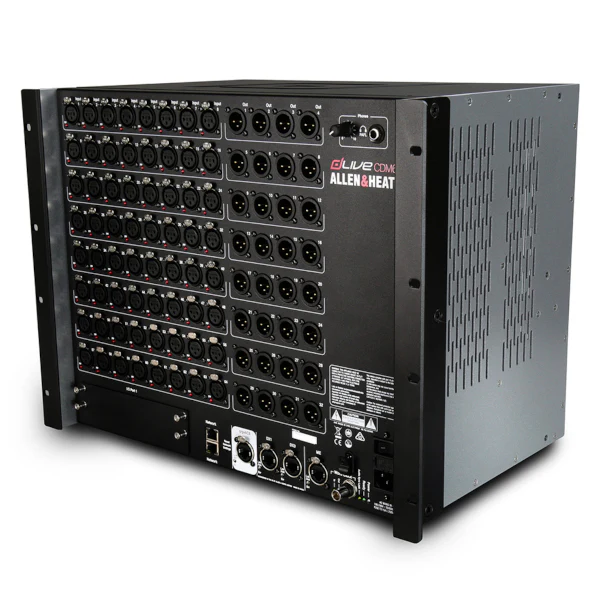

Allen & Heath dLive CDM64U Mixrack with UltraFX

The CDM64U dLive Mixrack / Mainframe has 64 analog inputs and 32 analog local I/O outputs.

Like all V2 dLive MixRacks, CDM64U has a matrix of 128 inputs x 64 outputs, all with full processing, all operating at a sampling frequency of 96 kHz, a 96-bit accumulator and the new UltraFX expansion already installed!

Up to 48 I/O endpoints can be created via Allen & Heath network I/O boxes running DX and gigaACE protocols.

Almost any external control system capable of establishing a TCP/IP connection can be used to control the CDM64U, in addition to Allen & Heath's IP remote controls and dLive surfaces.

Features:

• UltraFX Expansion inside!
• 128 Input matrix x 64 outputs
• 64 channels for automatic microphone mixing

• Ethernet-based audio extension
• External control drivers available
• 64 analog inputs, 32 analog outputs
• 128-channel I/O port for Dante, MADI, Waves
• SoundGrid etc.
• Compact and economical

• More than 800x800 networked audio I/O
• Compatible with IP remote controls
• Extremely low latency time (<0.7mS)
• High-quality audio quality
• Small footprint
